Program Compilation Tutorial

Program Compilation

Program Compilation Process Step-By-Step Explanation

Definition Of Program Compilation

The program compilation is defined as the process of translating the high level program into low level machine code in binary using the compiler.

The computer due to its hardware architecture can execute only binary machine instructions. And therefore, all programs written in any language other than the machine code must be first converted to machine instructions.

The program compilation is a multi stage process that converts the human readable high level computer program into low level machine readable code in binary format.

Program Compilation Process

Program Compilation Stages

Compilation Stage

Accepts

Input

Gives

Output

Result

1. Pre-processing

Program Source Code

Pre-processed Code

Resolve # include Directive

Expand # define Directive

Remove Comments

2. Compilation

Pre-processed Code

Assembly Code Instructions

Compiler Produce Assembly Code

3. Assembly

Assembly Code Instructions

Object Code File

Assembler Produce Object Code

4. Linking

Object Code Files

Single Machine Code File

Linker Links And Produce Executable Machine Code

The conversion of program source code into executable file ( dot exe ) happens in four stages. These four stages of compilation  are pre-processing , compiler , assembly and finally the linking stage.

However , in most situation all these four stages together is referred as program compilation process . In this tutorial , we are going to discuss all the four stages in details.

Program Compilation Video Tutorial

Program Compilation Process

Four Stages Of Program Compilation Explained

The program compilation for a high level programs is a multistage process. The programmer writes the program code as per the programming language syntax.

A compiler is a special type of system software is used to translate the program source code file into machine code. The machine code consist of machine instructions in binary.

The machine instructions are encoded by compiler in specific format called instruction format. The CPU decodes the machine instruction as directed by the instruction format.

The high level computer programs are compiled by the compiler in four stages. Each stage of the compilation process takes the input from previous stage.

Four Stages Of Program Compilation

Program Compilation

STAGE - 1

Preprocessing

What Is Preprocessing Stage ?

The first stage of the compilation process is called the preprocessor stage. Alternately, this stage is also referred as lexical analysis stage.

The preprocessor stage takes the program source code file as input and provides preprocessed file as output with dot i extension.

The compiler scans the source code file for all preprocessor directives that is all # include and # define codes.

The preprocessing stage includes all the header files , all macros are resolved by replacing them with absolute values and the comments are excluded.

C Program Example

In C programming, the standard library functions are stored into separate header file with dot h extension. The separate header file helps to better organize the program code and improves the readability.

The programmer can include the standard function  header files as well as other files that contains the user defined functions into the program depending upon the functionality of the program.

Program Compilation

STAGE - 2

Compilation

What Is Compilation Stage ?

The compilation is the second stage of the program compilation process. The compiler accepts the preprocessed file as input and provides the assembly code as output file with dot s extension .

The compiler converts all high level program instructions into its equivalent assembly code instructions. These instructions are platform dependent and compiled for a specific architecture.

Program Source Code

Program Compilation C Program Example

Program Assembly Code

Program Compilation Assembly Stage

Program Compilation

STAGE - 3

Assembling

What Is Assembly Stage ?

The compilation is the second stage of the program compilation process. The compiler accepts the preprocessed file as input and provides the assembly code as output file with dot s extension .

The compiler converts all high level program instructions into its equivalent assembly code instructions. These instructions are platform dependent and compiled for a specific architecture.

Example - Assembly Code

Program Instructions In Assembly Language

Example - Object Code

Machine Instructions In Binary

Program Compilation

STAGE - 4

Linking

What Is Linking Stage ?

The linking is the final and fourth stage of the compilation process. The main function of the linking is to produce a single executable file ( Sourcefile.exe ) by linking all the object code files .

The large  computer  programs  are organized into number of  manageable files. The  user  defined  functions  are  written  in a separate file . These files are tied to the main program file in the header section such as  # include  in   C language .

Similarly , the programming language also provides standard library functions in the pre-compiled object code format which programmer can readily use  to  simplify  the  programming  jobs .

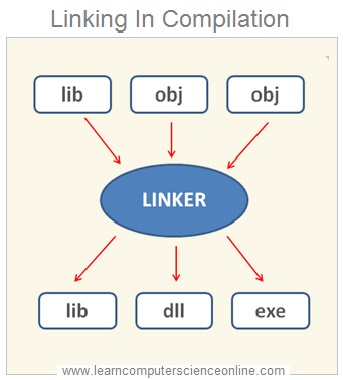

Object Linking In Compilation
Compilation in Programming

The  programmer can  use   these  user defined   functions  and standard function  libraries  by simply  including  these files in the beginning of the program  header  section  .

Since  the  standard  library  code  is in the object code  form  which is a   pre-compiled   format  and  can be directly  included  at  the  linking  stage  by  the  linker   while  creating an  executable  file  (  sourcefile.exe  for windows platform ) during  the  program  compilation  process .

Linking In Program Compilation

Program Compilation

Why Computer Programs Are Compiled ?

It is important for the students of computer science to understand why do we need to compile the high level programs.

The high level programs are programs are developed in high level programming language such as C language , C ++ , Python , dot Net , and java.

The high level programs are human readable . Each high level programming language has its own syntax and reserve keywords which prompts the computer to perform specific tasks.

The high level programming languages are specially designed  keeping in mind the ease of programming. Most high level programming language keywords use common English words.

Machine Instructions , Machine Code

The  programmer can  use   these  user defined   functions  and standard function  libraries  by simply  including  these files in the beginning of the program  header  section  .

Since  the  standard  library  code  is in the object code  form  which is a   pre-compiled   format  and  can be directly  included  at  the  linking  stage  by  the  linker   while  creating an  executable  file  (  sourcefile.exe  for windows platform ) during  the  program  compilation  process .

Program Compilation

What Is Compiler ?

It is important for the students of computer science to understand why do we need to compile the high level programs.

The high level programs are programs are developed in high level programming language such as C language , C ++ , Python , dot Net , and java.

The high level programs are human readable . Each high level programming language has its own syntax and reserve key words which prompts the computer to perform specific tasks.

The high level programming languages are specially designed  keeping in mind the ease of programming. Most high level programming language keywords use common English words.

Types Of Programming Language

However , the computer system cannot directly execute the high level program code. At the hardware level , the computer processor can decode and execute only machine instructions in binary.

And therefore , the high level program code written in any programming language must be first converted into low level binary machine code. This conversion process is called as program compilation.

Java Compilation , Java Programming Basics
